Fork Models 100, 110, 200, & 210 Operator's Manual PDF

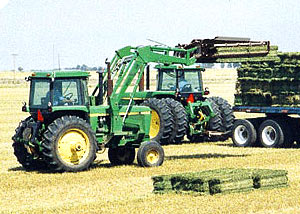

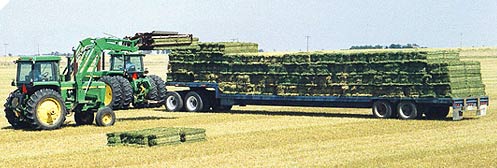

Accumulated bales are quickly picked up with one of these forks mounted to your loader. These models are also ideal for all-around loading and stacking. Bales can be loaded on your own hay trailers, trucks, or semi-trailers. The 100 series is for 14" x 18" bales, and the 200 series is for 16" x 18" bales. Each series has two lengths available to match your bale size. Bales may be picked up, moved, and stacked as high as your loader will raise, anywhere your tractor will go, and retrieved just as easily. When stacked, the bales will be tighter together and more weather resistant than if stacked by hand.



Forks
  Model 100 Model 110 Model 200 Model 210
Length (overall) 84"
(2133mm)
107"
(2718mm)
84"
(2133mm)
107"
(2718mm)
Length (usable) 74"
(1880mm)
95"
(2413mm)
74"
(1880mm)
95"
(2413mm)
Width 70"
(1778mm)
70"
(1778mm)
80"
(2032mm)
80"
(2032mm)
Height 23" (584mm) 25" (635mm) 23" (584mm) 25" (635mm)
Weight 580lbs (263kg) 660lbs (299kg) 620lbs (281kg) 700lbs (318kg)
No. of Hooks 20 30 20 30
For bale size 14x18"
(356x457mm)
14x18"
(356x457mm)
16x18"
(406x457mm)
16x18"
(406x457mm)
For bale length 38-44"
(965-1118mm)
44-50"
(1118-1270mm)
38-44"
(965-1118mm)
44-50"
(1118-1270mm)
Bale capacity 10 10 10 10
