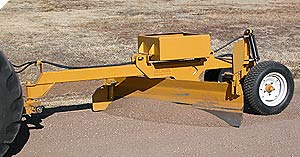

GR Grader


The Hoelscher GR compact grader gives versatility, productivity and added value to your small tractor. The pull-type design, with a trunnion style hitch attached to the tractor's 3-point arms, gives it exceptional maneuverability, improved productivity and reduced operator input.
Compact size allows for use in residential areas, or around construction sites. The unit's heavy weight, with an 18" high moldboard lets it do the tough jobs.
Massive 1" side plates on the frame and a heavy 3/8" thick moldboard provide for maximum penetration and rigidity. The king-pin is supported on top and bottom for increased life and more accurate cutting. The 1" thick rack provides large contact area of the lock pin, for positive blade settings, up to 45 degrees left or right.
On-the-go control of blade tilt lets you maintain the desired grade, up to 20 degrees up or down. Large tires provide stability for consistent grading.



GR Grader
  GR-6 GR-8
Moldboard width 72" (1829mm) 96" (2438mm)
Weight 950lbs (431kg) 1020lbs (463kg)
Tractor requirement 30-50 hp 40-50 hp
Modlboard height 18" (457mm)
Transport clearance 7.2" (183mm)
Length 116.5" (2959mm)
Height 38.25" (972mm)
Cutting edge 6" double-bevel
Tires 26-12x12.00-4 ply
Hitch requirement Category 1-Three point
Hydraulic requirement 1 double acting circuit
