RB Scraper


The "Rolling Box" Scraper makes leveling easy and gives high productivity. You can rip, level, and pack all in one pass. Pull-type design reduces the vertical movement of the blade significantly as the tractor bounces over rough terrain. See significant results the first time over.
Each "lift" is packed by the heavy steel roller as it's placed, reducting the need for secondary operations. Or, the unit may be equipped with rubber tires if compaction isn't wanted. The trunnion style hitch and gooseneck frame provide for 90 degree turns, with up to 30 degrees of oscillation.

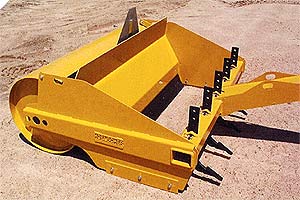

The steel roller on the RB-R model breaks clods, smooths, and packs. The drum can be filled with fluid or sand for added weight. It's mounted on sealed bearings.

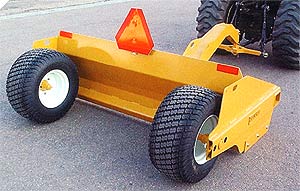

Large flotation tires on the RB-W model provide for easy transportation when packing isn't needed. The wheels are interchangeable with a roller.
With more than 20" between the frame and mold-board, and adjustable side skirts to hold the load in, this unit provides exceptional capacity.
Massive frame supports scarifier teeth for ripping through hard soil. Blade is heat treated and double beveled for long life.



RB-R Scraper
  RB-4R RB-5R RB-6R
Effective Width 48" (1219mm) 60" (1524mm) 72" (1829mm)
Overall Width 52.25"
(1327mm)
64.25"
(1632mm)
76.25"
(1937mm)
Maximum Depth 1.25" (32mm) 1.25" (32mm) 1.25" (32mm)
Trans. Clearance* 4.38" (111mm) 4.38" (111mm) 4.38" (111mm)
Load Capacity 0.58cu.yd
(.45cuM)
0.73cu.yd
(.56cuM)
0.88cu.yd
(.67cuM)
Length 107.5"
(2730mm)
107.5"
(2730mm)
107.5"
(2730mm)
Height 28.5" (724mm) 28.5" (724mm) 28.5" (724mm)
Weight 1060lbs (481kg) 1220lbs (553kg) 1360lbs (616kg)
Cutting Edge 6" double
bevel
6" double
bevel
6" double
bevel
Roller Diameter 24" (607mm) 24" (607mm) 24" (607mm)
Roller Capacity 69 gal (261 l) 89 gal (336l) 109 gal (411l)
Power Required 25-35hp (18-25kW) 35-50hp (25-37kW) 45-50hp (33-37kW)
Hitch Required Cat 1-three
point
Cat 1-three
point
Cat 1-three
point


RB-W Scraper
  RB-4W RB-5W RB-6W
Effective Width 48" (1219mm) 60" (1524mm) 72" (1829mm)
Overall Width 52.25" (1327mm) 64.25" (1632mm) 76.25"
(1937mm)
Maximum Depth 1.25" (32mm) 1.25" (32mm) 1.25" (32mm)
Trans. Clearance* 4.38" (111mm) 4.38" (111mm) 4.38" (111mm)
Load Capacity 0.58cu.yd. (.45cuM) 0.73cu.yd. (.56cuM) 0.88cu.yd
(.67cuM)
Length 107.5" (2730mm) 108.25" (2750mm) 108.25"
(2750mm)
Height 28.5" (724mm) 28.5" (724mm) 28.5" (724mm)
Weight 720lbs (327kg) 780lbs (354kg) 820lbs (372kg)
Cutting Edge 6" double
bevel
6" double
bevel
6" double
bevel
Tires 25-8.5 x 14 26-12 x 12.00 26-12 x 12.00
Power Required 25-35hp (18-25kW) 35-50hp (25-37kW) 45-50hp
(33-37kW)
Hitch Required Cat 1-three point Cat 1-three point Cat 1-three
point

*Transport Clearance depends on lift height of the tractor's 3-point arms. Always use ROPS and safety belts when operating machinery. Hoelscher, Inc reserves the right to change specifications, without notice.
